Principle of construction

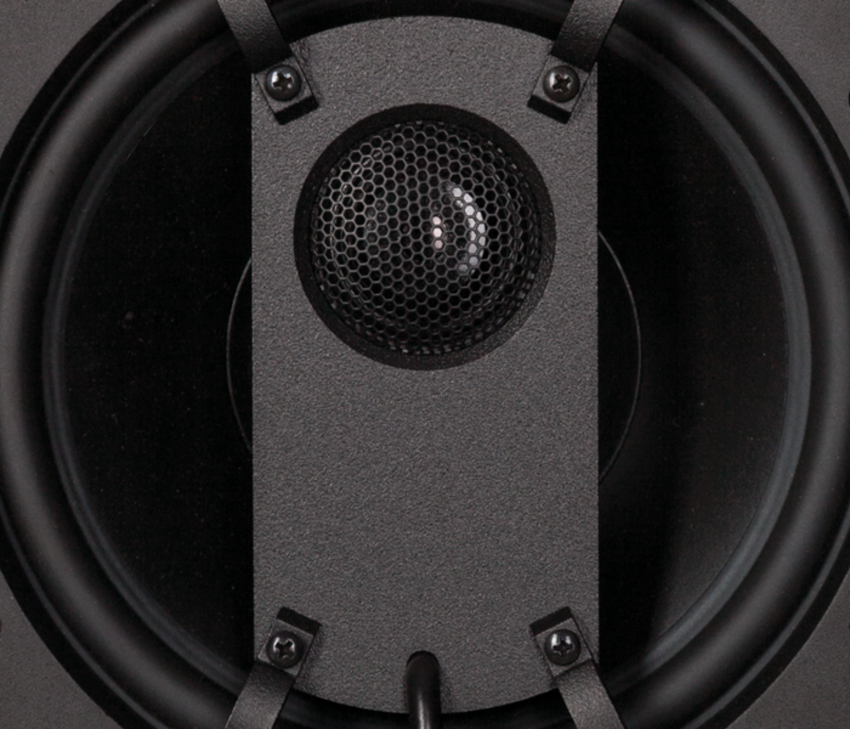

Coaxial 2-way-system in vented box

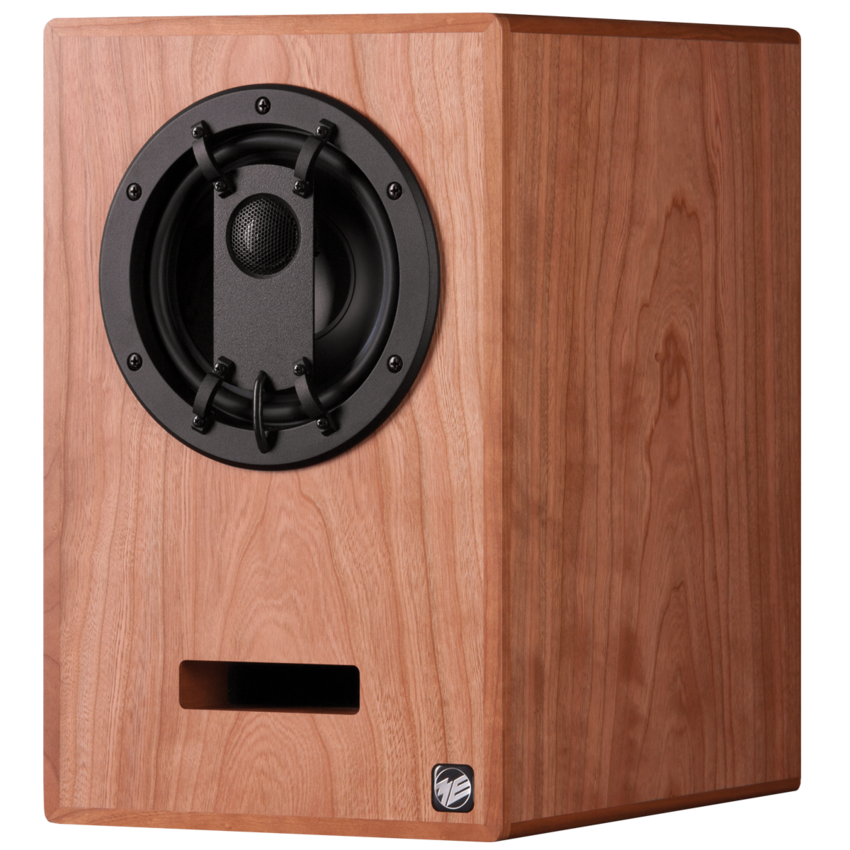

ME 100(C) 2-way-coaxial-compact-loudspeaker in vented box
The 6.5-inch woofer system and the 1-inch tweeter system of the ME 100 passive 2-way coaxial loudspeaker are integrated into a vented cabinet and feature excellent linearity. Its mid-treble range qualities are highly independent of room characteristics, which contributes to uncomplicated spatial positioning of the loudspeaker.

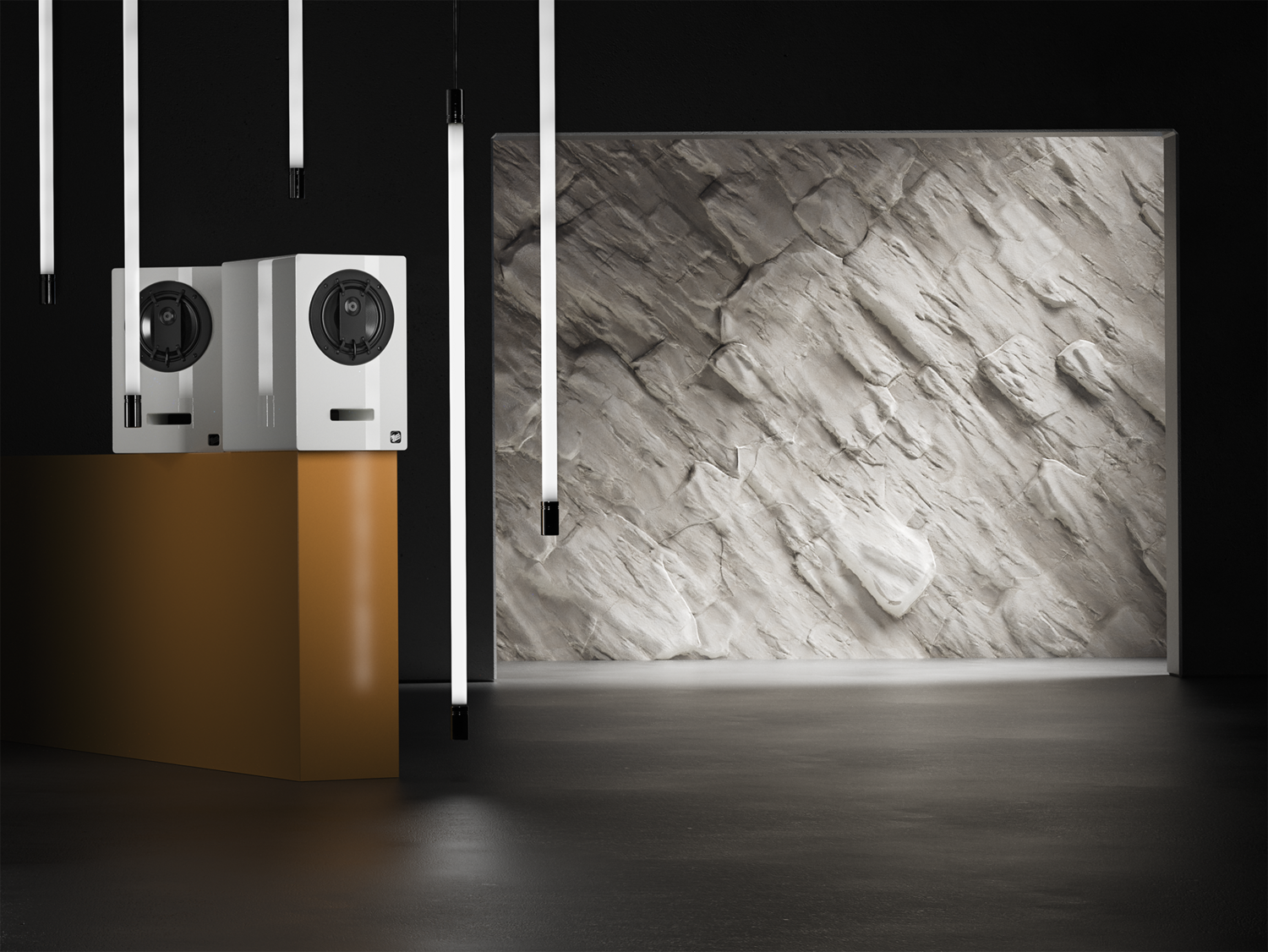

Shown color and veneer: High gloss white and american cherry nature
ME 100 / ME 100C excellent linearity
The 6.5-inch woofer system and the 1-inch tweeter system of the ME 100 passive 2-way coaxial loudspeaker are integrated into a vented cabinet and feature excellent linearity. Its mid-treble range qualities are highly independent of room characteristics, which contributes to uncomplicated spatial positioning of the loudspeaker. The particular radiation characteristics allow a well-balanced listening experience for a basis width between 1.50 metres and 3 metres.

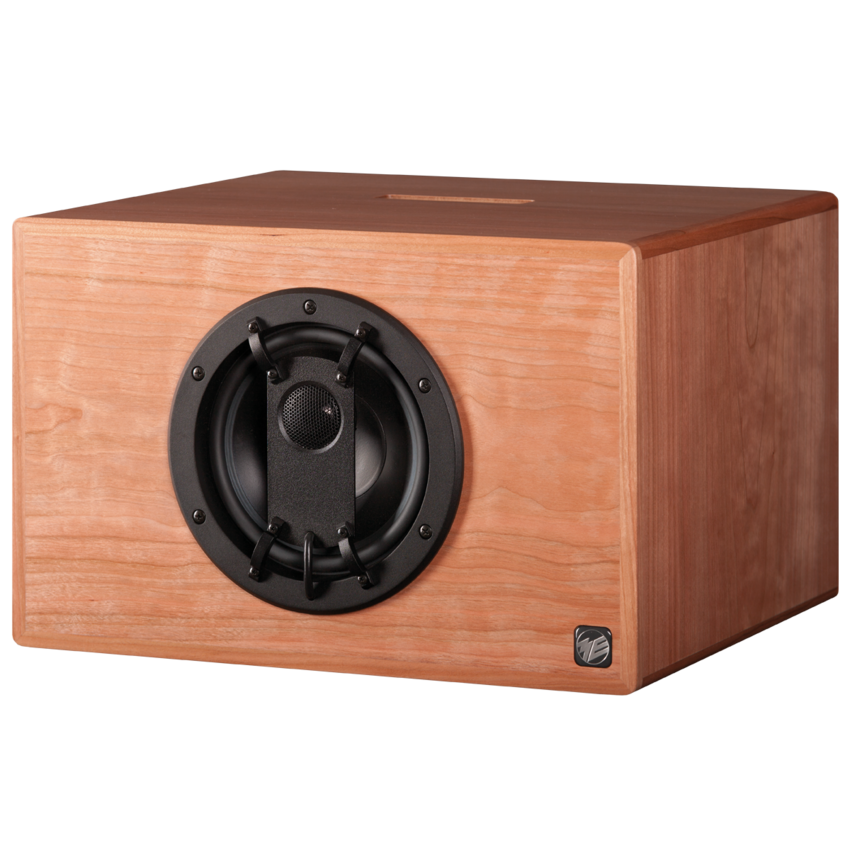

The ME 100 performs very well as front and effect loudspeaker in surround systems. As a centre speaker the ME 100C was designed, which is better integrable due to its lesser height. In addition the speaker is inclinable up to 15° to the top with the height-adjustable feet at the cabinet bottom. Therefore a perfect alignment to the listening position is possible. The centre speaker doesn‘t fall behind the ME 100 regarding acoustical and technical performance. In connection with a suitable AV receiver, the surround system can be complemented with our BASIS models.
Optionally, a stand in matching veneer or colour with integrated cable duct is available.
The general concept of the passive 2-way coaxial loudspeakers ME 100 and ME 100C offers a high sound compatibility to the RL model range of active loudspeakers and convinces with its phenomenal spatial imaging and neutrality. Moreover, the monitors stand out due to their well-balanced and low-distortion sound image and their high dynamic qualities.
Technical data
Passive high-end-compact-loudspeaker for listening distances between 1.50 m (5 ft) and 3 m (10 ft)
Acoustic characteristics
Maximum SPL
111 dB peak / r = 1 m (3.3 ft)
Bandwidth
50 Hz ... 20 kHz ± 3 dB / 4 pi
Sensitivity
85 dB

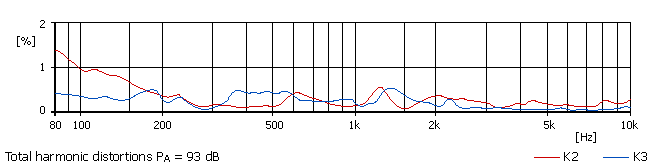

Total harmonic distortion
measured at 93 dB / r = 1 m (3.3 ft) from 100 Hz ... 10 kHz
≤ - 40 dB
Electronic crossover frequency
2.5 kHz
Loudspeaker systems
Woofer
160 mm (6.5") cone
Tweeter
25 mm (1") dome
Electrical parameters
Impedance
4 Ohms
Nominal power capacity
100 W
Maximum power capacity
150 W
Recommended amplifier power
80 W ... 150 W
Input connector
gold-plated binding posts
Physical parameters
Temperature requirements
for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %
Dimensions (H x W x D)
ME 100
398 x 254 x 345 mm (15.7" x 10" x 13.6")
ME 100C
254 x 398 x 345 mm (10" x 15.7" x 13.6")
ME 100 with Pedestal
1109 x 275 x 365 mm (43.7" x 10.8" x 14.4")
Weight
ME 100
12 kg (26.4 lbs)
ME 100C
12 kg (26.4 lbs)
ME 100 with Pedestal
18 kg (39.6 lbs)
Cabinet and options
Design of the cabinet
MDF-wood in ash black veneered; optional different veneers or colours
ME 100
optionally with holding device available
ME 100C
with heigth-adjustable feet at the cabinet bottom
Pedestal
optional for ME 100
Other parameters
Directivity index
from 100 Hz ... 10 kHz
increasing from 1 dB to 8 dB
Downloads

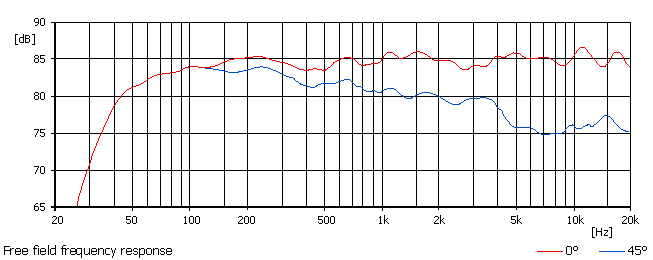

Acoustic diagrams
Brochure and Documentation
Technical drawings

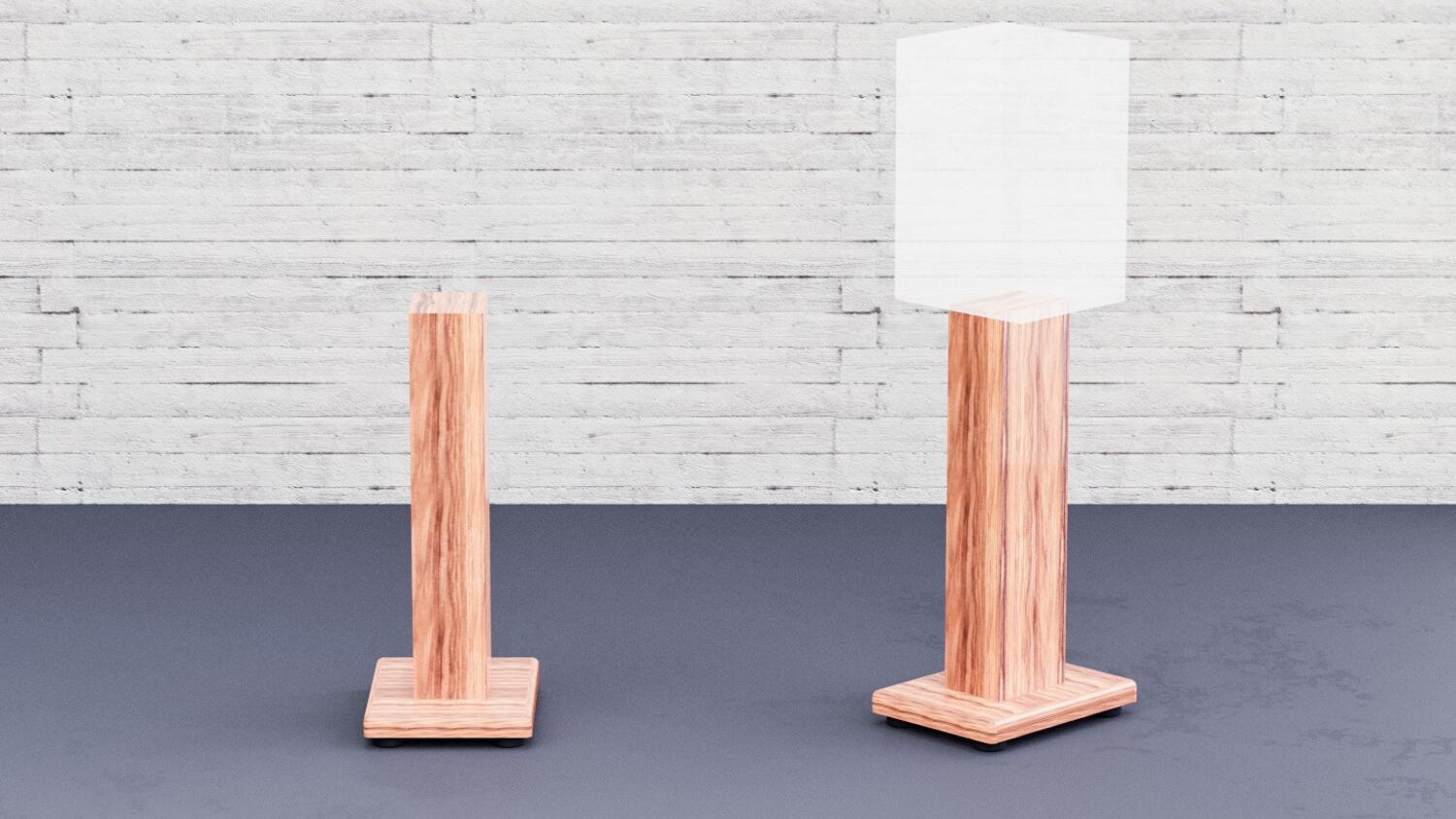

Pedestal
Integrated cable duct in the pedestal
Height (Top edge loudspeaker): approx. 1109 mm (43.7")
Base panel (W x D): 275 x 365 mm (10.8" x 14.4")
Pedestal veneered
