Principle of construction
Coaxial 3-way-system in vented box

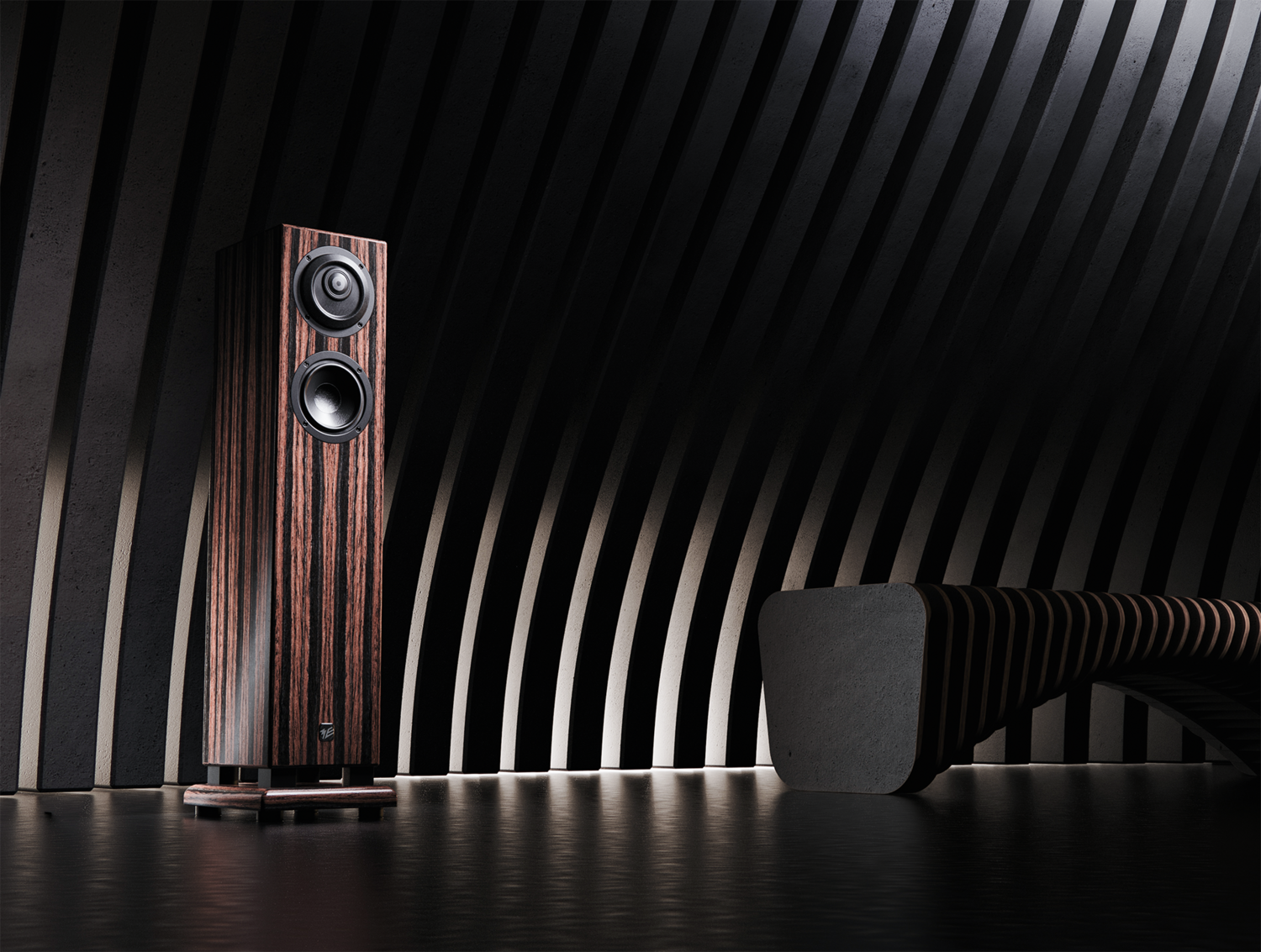

ME 110 3-way-coaxial-floorstanding-loudspeaker in vented box
The ME 110 passive 3-way coaxial loudspeaker is the smallest floorstanding loudspeaker in our ME series. Its two 5-inch cone loudspeakers, which reproduce the bass and middle frequency range, convince with excellent converter linearity.
ME110 the smallest floorstanding loudspeaker in our ME series
The ME 110 passive 3-way coaxial loudspeaker is the smallest floorstanding loudspeaker in our ME series. Its two 5-inch cone loudspeakers, which reproduce the bass and middle frequency range, convince with excellent converter linearity. They are fitted into a bass-reflex cabinet with a downward-radiating exit opening. This design simplifies the positioning of the loudspeakers for achieving optimal bass reproduction in your listening room. A 1-inch calotte serves as tweeter unit, located coaxially in front of the upper bass-midrange system. The particular radiation characteristics, in connection with the coaxial arrangement, allow a homogenous and natural sound image for a basis width between 1.50 m and 3 m. Using a suitable AV receiver, the ME 110 floorstanding loudspeaker can be complemented with our BASIS 11K subwoofer.
The general concept of the passive 3-way coaxial loudspeaker ME 110 is characterised by its well-balanced and low-distortion sound image and its dynamic qualities.
Technical data
Acoustic characteristics
Maximum SPL
110 dB peak / r = 1 m (3.3 ft)
Sensitivity
85 dB
Bandwidth
45 Hz ... 20 kHz - 3 dB / 4 pi
Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft)from 100 Hz ... 10 kHz
≤ - 40 dB
Electronic Crossover frequencies
300 Hz and 2.2 kHz
Loudspeaker systems
Woofer
125 mm (5") cone
Mid-range unit
125 mm (5") cone
Tweeter
25 mm (1") dome
Electrical parameters
Impedance
4 Ohm
Nominal power capacity
80 Watt
Maximum power capacity
120 Watt (at programme material)
Recommended amplifier power
80 ... 120 Watt
Input connector
bi-wiring, gold-plated screwed joint
Physical parameters
Dimensions
Loudspeaker (H x W x D)
955 x 205 x 245 mm (37.6 x 8 x 9.6 in)
Baseplate (W x D)
250 x 290 mm (9.8 x 11.4 in)
Weight
18 kg (40 lbs)
Cabinet and options
Design of the Cabinet
MDF-wood ash black veneered, optional different veneers or colors
Other parameter
Directivity index
from 200 Hz ... 10 kHz
increasing from 3 to 11 dB
