Principle of construction
Coaxial 3-way-system in vented box

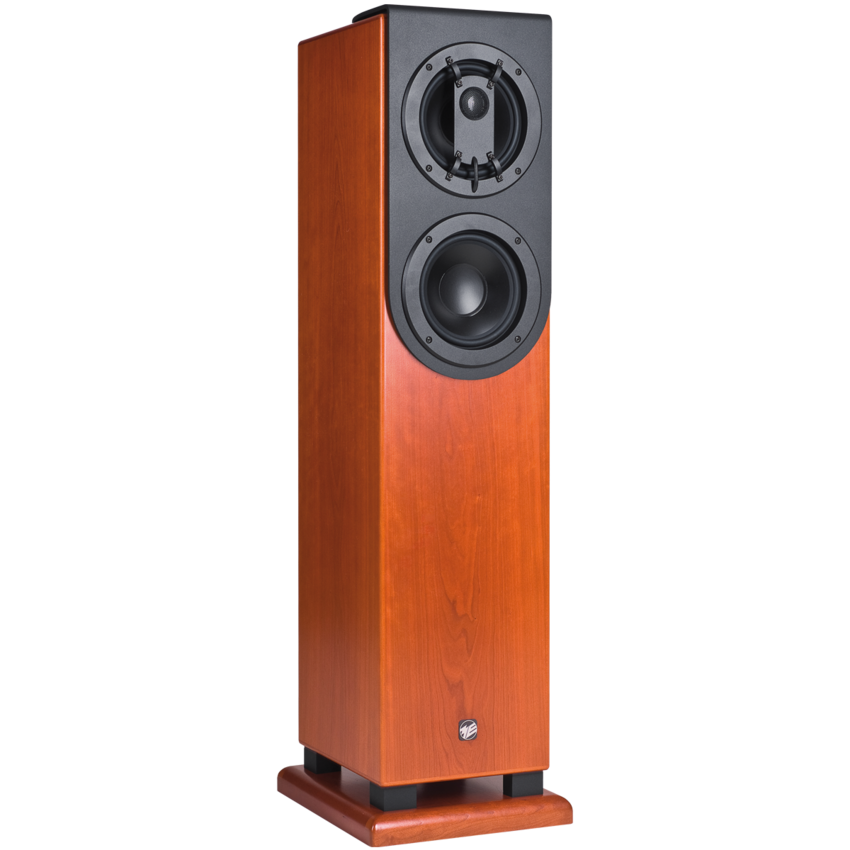

ME 150 3-way-coaxial-floorstanding-loudspeaker in vented box
"No ifs and buts, Joachim Kiesler succeeded to build an extremely living-room-friendly passive loudspeaker. Its sound keeps up with the paramount performance of the active monitors. A down-to earth speaker that does what it was created for – passing on the music just as it is being supplied."
Rolf Linden-Brüning, "Hörerlebnis" magazine, issue 63 (2008)

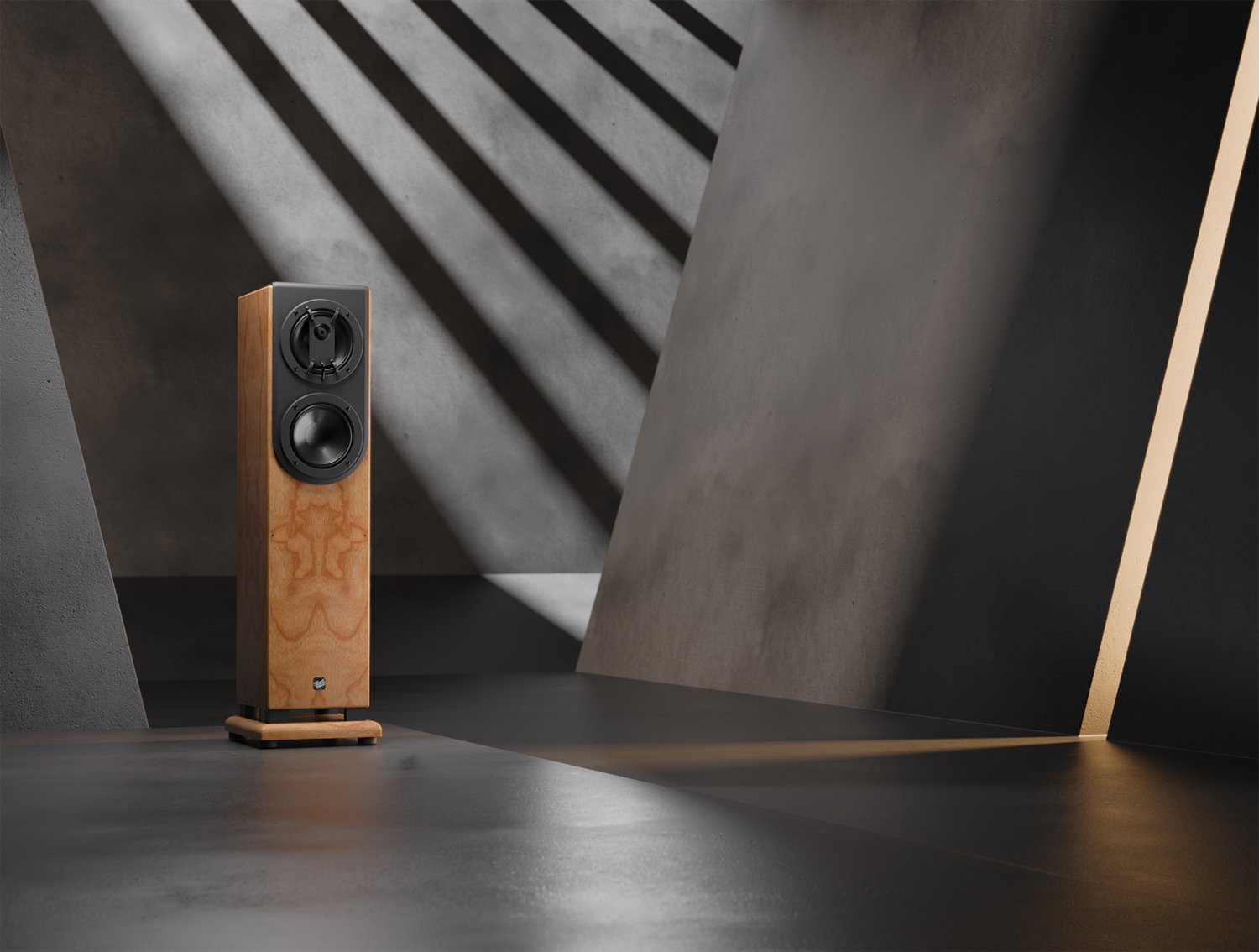

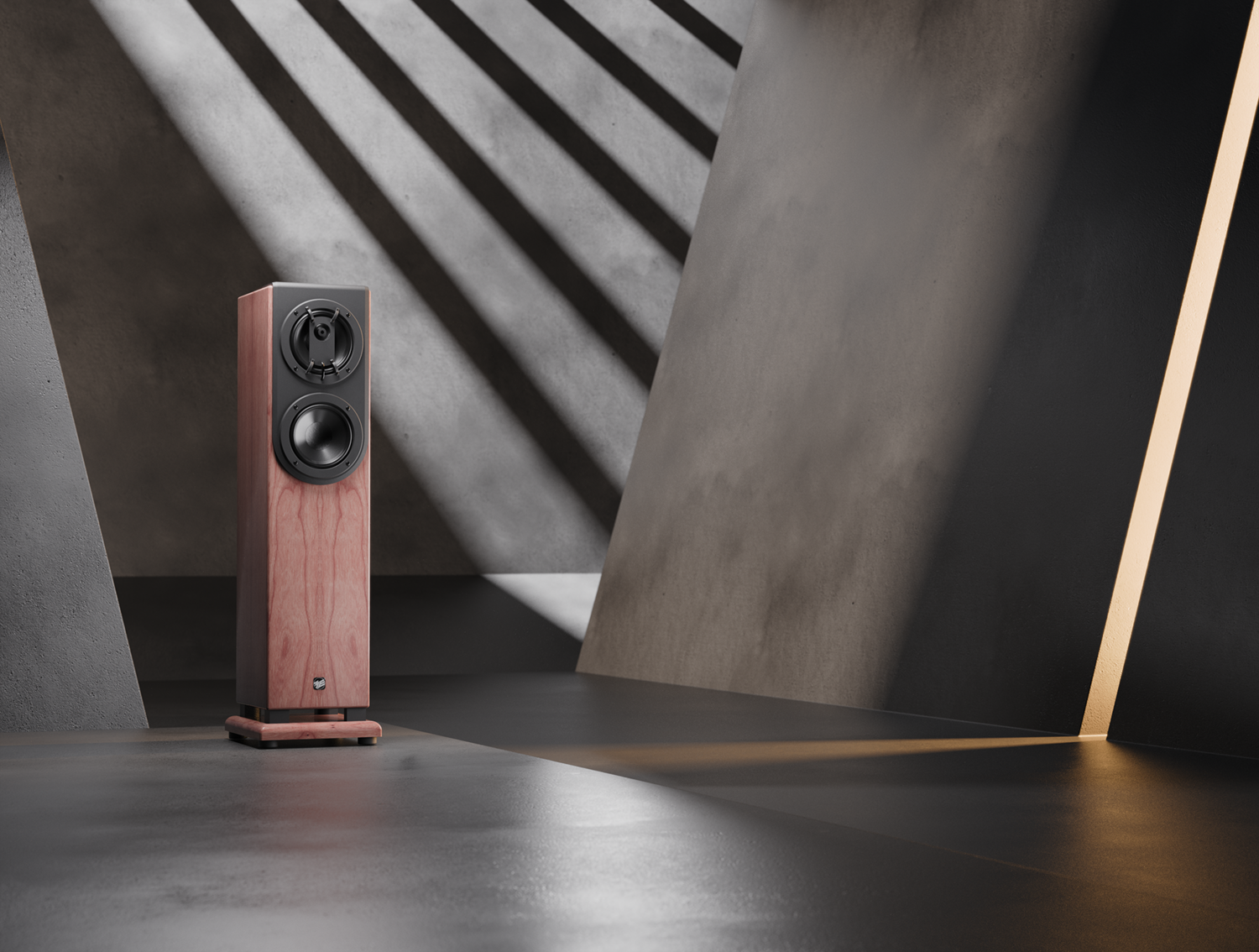

Shown color and veneer: High gloss white and american cherry stained
ME 150 Convincing impact through excellent converter linearity

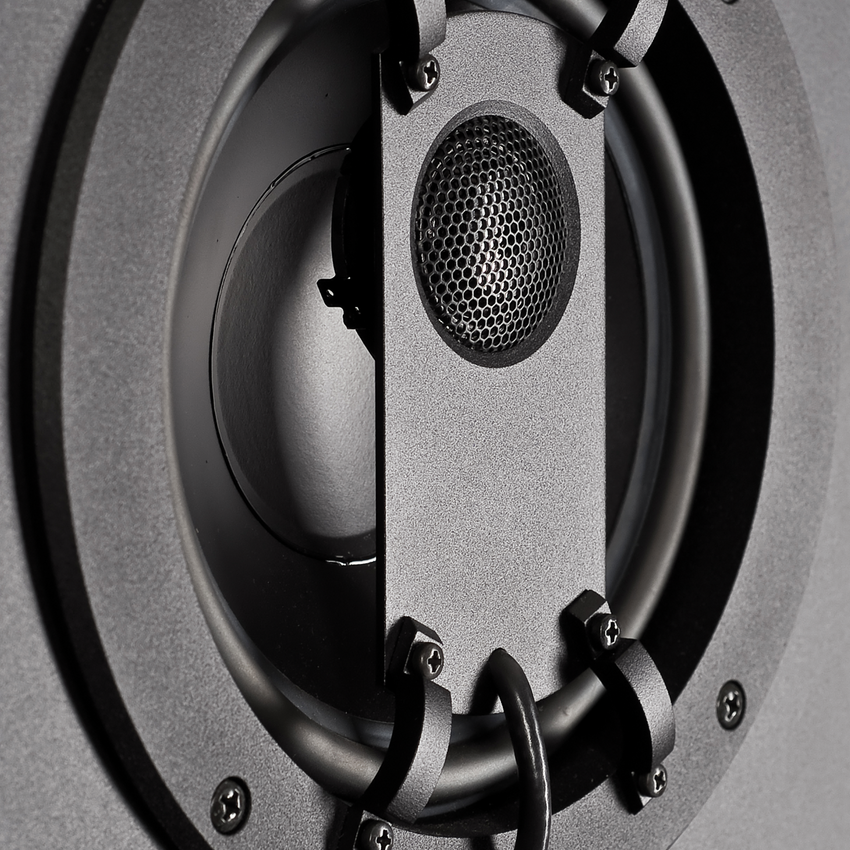

The two 6.5-inch cone loudspeakers of the ME150 passive 3-way floorstanding loudspeaker are responsible for the reproduction of the bass and mid frequencies and convince with excellent converter linearity. Both bass-midrange systems are placed in a bass-reflex cabinet with a downward-radiating exit opening. This design simplifies the positioning of the loudspeakers for achieving optimal bass reproduction in your listening room. A 1-inch calotte serves as tweeter unit, located coaxially in front of the upper bass-midrange system. The particular radiation characteristics, in connection with the coaxial arrangement, allow a homogenous and natural sound image for a basis width between 2 m and 3.5 m. Using a suitable AV receiver, the ME 150 floorstanding loudspeaker can be complemented with a subwoofer from our BASIS series.
The general concept of the passive 3-way coaxial loudspeaker ME 150 is characterised by its well-balanced and low-distortion sound image and its high dynamic qualities.
"No ifs and buts, Joachim Kiesler succeeded to build an extremely living-room-friendly passive loudspeaker. Its sound keeps up with the paramount performance of the active monitors. A down-to earth speaker that does what it was created for – passing on the music just as it is being supplied."
Rolf Linden-Brüning, "Hörerlebnis" magazine, issue 63 (2008)
Technical data
Passive high-end-floorstanding-loudspeaker for listening distances between 2 and 3.50 m
Acoustic characteristics
Maximum SPL
112 dB peak / r = 1 m (3.3 ft)

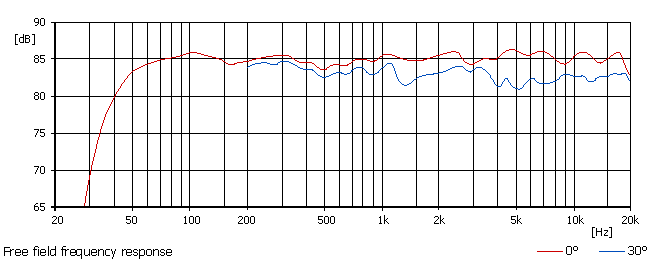

Bandwidth
45 Hz ... 20 kHz - 3 dB / 4 pi
Sensitivity
85 dB

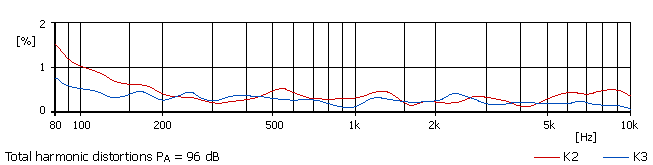

Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft) from 100 Hz ... 10 kHz
≤ - 40 dB
Electronic Crossover frequencies
300 Hz and 2.2 kHz
Loudspeaker systems
Woofer
160 mm (6.5") cone
Mid-range unit
160 mm (6.5") cone
Tweeter
25 mm (1") dome
Electrical parameters
Impedance
4 Ohm
Nominal power capacity
160 Watt
Maximum power capacity
200 Watt (at programme material)
Recommended amplifier power
100 ... 200 Watt

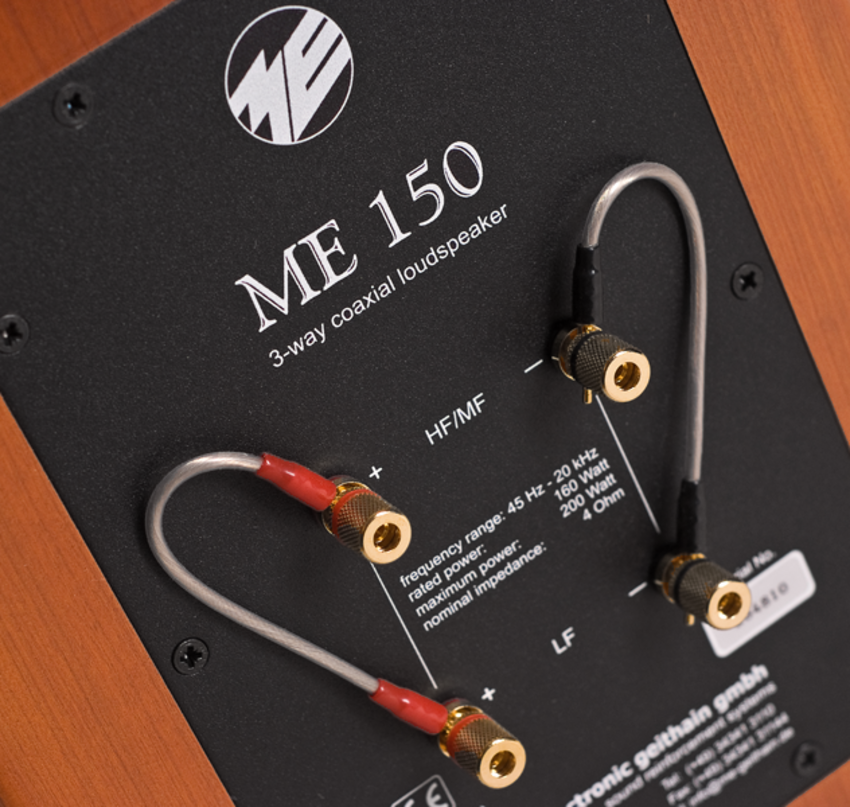

Input connector
bi-wiring, gold-plated screwed joint
Physical parameters
Temperature requirements
for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %
Dimensions
Loudspeaker (H x W x D)
1035 x 240 x 300 mm (40.7 x 9.5 x 11.8 in)
Baseplate (W x D)
285 x 330 mm (11.2 x 13 in)
Weight
26 kg 58 (lbs)
Cabinet and options
Design of the cabinet
corpus
MDF-wood in ash black veneered; optional different veneers or colors
acoustic baffle
MDF-wood in microstructure semi gloss black
Other parameters
Directivity index
from 100 Hz ... 10 kHz
increasing from 3 to 8 dB
