Principle of construction
coaxial 3-way-system in vented and closed box
ME 180 3-way-coaxial-floorstanding-loudspeaker in vented and closed box
The ME 180 extends Musikelectronic Geithain’s product range of passive high-end loudspeakers. The three-way concept comprises two highly efficient 10-inch woofer systems and a tweeter array of three vertically arranged 1-inch dome tweeters. Through this combination a sensitivity of 90 dB is achieved without wave guides.
Shown veneer: rosewood nature and american cherry nature
ME 180 Powerful sound for large listening spaces
The ME 180 extends Musikelectronic Geithain’s product range of passive high-end loudspeakers. The three-way concept comprises two highly efficient 10-inch woofer systems and a tweeter array of three vertically arranged 1-inch dome tweeters. Through this combination a sensitivity of 90 dB is achieved without wave guides. In connection with the linearised impedance the ME 180 is also the perfect partner to tube amplifiers. Power compression and non-linear distortions are therefore very low, even in fortissimo passages. The directivity index of the system has been optimised to listening distances between 3 and 6 metres, providing a natural sound image in stereo and multi-channel operation. The bass reflex system, designed to deliver optimal transient fidelity, ensures a precise and dry bass reproduction down to a roll-off frequency of 35 Hz. It is possible to close the cabinet’s vent and thereby prevent excessive increase in the bass range when positioned near walls.
Frequently used wave guides in front of tweeter systems make directivity control easy; however they tend to produce unavoidable colourations caused by short-time reflections at the inner horn surface. Musikelectronic Geithain breaks the mould by using a tweeter array, doing without horn attachments for sound level boost. The tweeter unit that is arranged coaxially in front of the midrange system guarantees the trademark low-colouration rendition of music and speech and creates the sound event closeness desired by the listener.
The ME 180 is adjustable to the acoustic conditions in the listening room. Especially in modern living rooms with longer reverberation time in the mid range the increase of the acoustic power in the presence range is possible as well as an attenuation at 200 Hz.
Summing up all the constructive measures, the ME 180 achieves seamless sound compatibility with all other products made in the Geithain manufacture. The highly neutral tone quality, excellent spatial performance and depth arrangement, together with fatigue-free monitoring of even most complex sound events are typical ME Geithain characteristics of this loudspeaker.
This loudspeaker will harmonise perfectly with your listening room due to its attractive design and the large variety of different wood veneers or high-gloss or semi-gloss varnish surfaces.
Technical data
passive high-end-coaxial-loudspeaker for listening distances between 3 m and 6 m
Acoustic characteristics
Maximum SPL
118 dB peak / r = 1 m (3.3 ft)

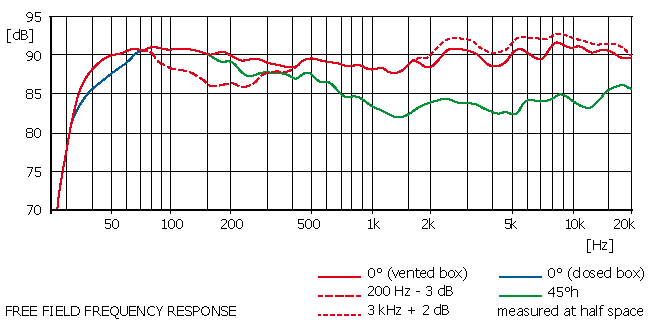

Bandwidth
35 Hz ... 20 kHz ± 3 dB / 2 pi
Sensitivity
90 dB / r = 1 m (3.3 ft)
Adjustments
200 Hz - 3 dB via gold plated jumper
3 kHz + 2 dB via gold plated jumper

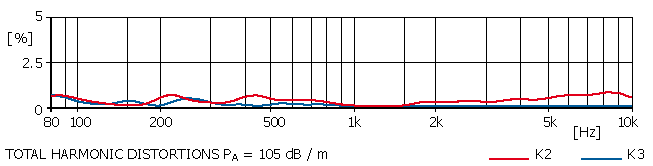

Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft) from 100 Hz ... 10 kHz
≤ - 44 dB
Electronic crossover frequencies
300 Hz and 2 kHz
Loudspeaker systems
Woofer
260 mm (10’’) cone
Mid-woofer
260 mm (10’’) cone
Tweeter
3x 25 mm (1’’) dome
Electrical parameter
Impedance
4 Ohms (impedance linearised)
Nominal power capacity
200 W
Maximum power capacity
500 W peak
Recommended amplifier power
50 W ... 500 W peak
Input connector
bi-wiring terminal
4 mm gold-plated binding posts / banana jacks
Physical parameters
Temperature requirements
for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %
Dimensions (H x W x D)
1.165 x 357 x 419 mm (45.9’’ x 14.1’’ x 16.5’’)
Weight
53 kg (116.8 lbs)
Cabinet and options
Design of the cabinet
MDF-wood in ash black veneered; optional different veneers or colours
Other parameters
Directivity index
from 100 Hz ... 10 kHz
increasing from 2 dB to 13 dB
