Principle of construction
Coaxial 2-way-system in vented box
ME 25 2-way-coaxial-compact-loudspeaker in vented box
"In spite of the minimal dimensions, these transducers sounded so true, natural and still musical – it really left a mark on us. When listening to these transducers, their perfect play makes you suddenly feel like a real audio engineer. Suddenly you hear details which you believe to never have heard before."
DVD & Surround Test 06/2003

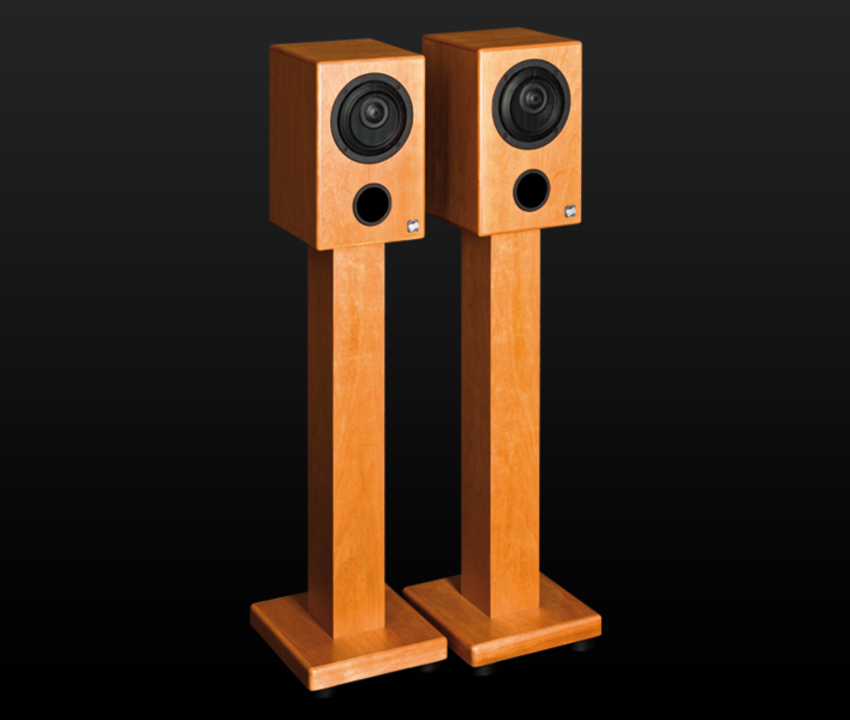

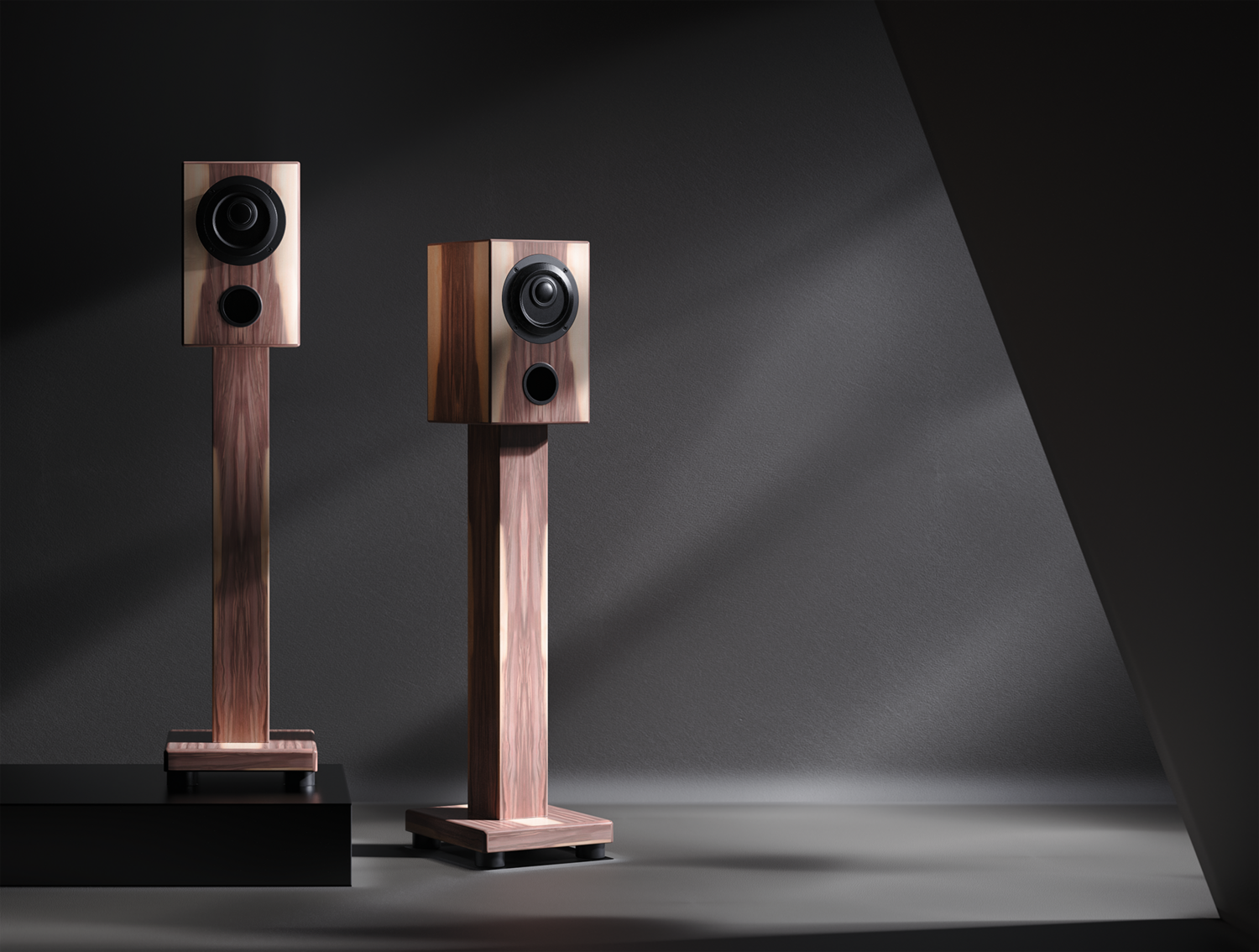

shown veneer: satin walnut nature and american cherry nature
ME 25 The most compact passive loudspeaker in our ME series
The ME 25 2-way coaxial loudspeaker is the most compact passive loudspeaker in our ME series. Its 5-inch woofer system and its 1-inch tweeter system are integrated into a bass-reflex cabinet and feature excellent converter linearity. The ME 25 performs very well as front and effect loudspeaker in 5.1 surround systems; in connection with a suitable AV receiver, it can be complemented with our Basis 11K subwoofer.
Its mid-treble range qualities are highly independent of room characteristics, which contributes to uncomplicated spatial positioning of the loudspeaker. The particular radiation characteristics allow a well-balanced listening experience for a basis width between 1 m and 3 m. The ME 25 can be operated horizontally. Optionally, a stand in matching veneer with integrated cable duct is available.
The general concept of the passive 2-way coaxial loudspeaker ME 25 is characterised by its minimal dimensions, its well-balanced and low-distortion sound image and its high dynamic qualities.
"In spite of the minimal dimensions, these transducers sounded so true, natural and still musical – it really left a mark on us. When listening to these transducers, their perfect play makes you suddenly feel like a real audio engineer. Suddenly you hear details which you believe to never have heard before."
DVD & Surround Test 06/2003
Technical data
Passive high-end-compact-loudspeaker for listening distances between 1 and 3m
Acoustic characteristics
Maximum SPL
108 dB peak / r = 1 m (3.3 ft)

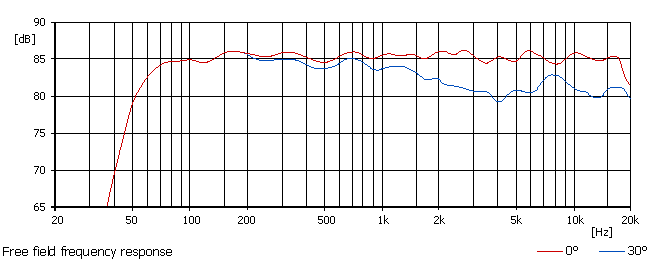

Bandwidth
50 Hz ... 20 kHz - 3 dB / 4 pi
Sensitivity
85 dB

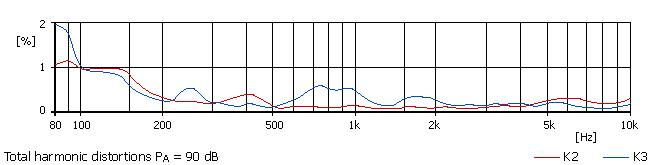

Total harmonic distortion
measured at 90 dB / r = 1 m (3.3 ft) from 100 Hz ... 10 kHz
≤ - 40 dB
Electronic Crossover frequencies
2.5 kHz
Loudspeaker systems
Woofer
125 mm (5") cone
Tweeter
25 mm (1") dome
Electrical parameters
Impedance
4 Ohm
Nominal power capacity
50 Watt
Maximum power capacity
80 Watt (at programme material)
Recommended amplifier power
50 ... 80 Watt
Input connector
Gold-plated screwed joint
Physical parameters
Temperature requirements
for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %
Dimensions (H x W x D)
Loudspeaker
320 x 205 x 220 mm (12.6 x 8.1 x 8.7 in)
Loudspeaker with Pedestal
1076 x 265 x 280 mm (42.4 x 10.4 x 11 in)
Weight
Loudspeaker
5,5 kg (12.1 lbs)
Loudspeaker with Pedestal
11 kg (24.2 lbs)
Cabinet and options
Design of the cabinet
Corpus
MDF-wood in ash black veneered; optional different veneers or colors
Holding device
none; optional with holding device
Pedestal
optional
Other parameters
Directivity index
from 200 Hz ... 10 kHz
increasing from 1.5 to 11 dB
Downloads
Acoustic diagrams
Brochure and Documentation
Reports
Technical drawings

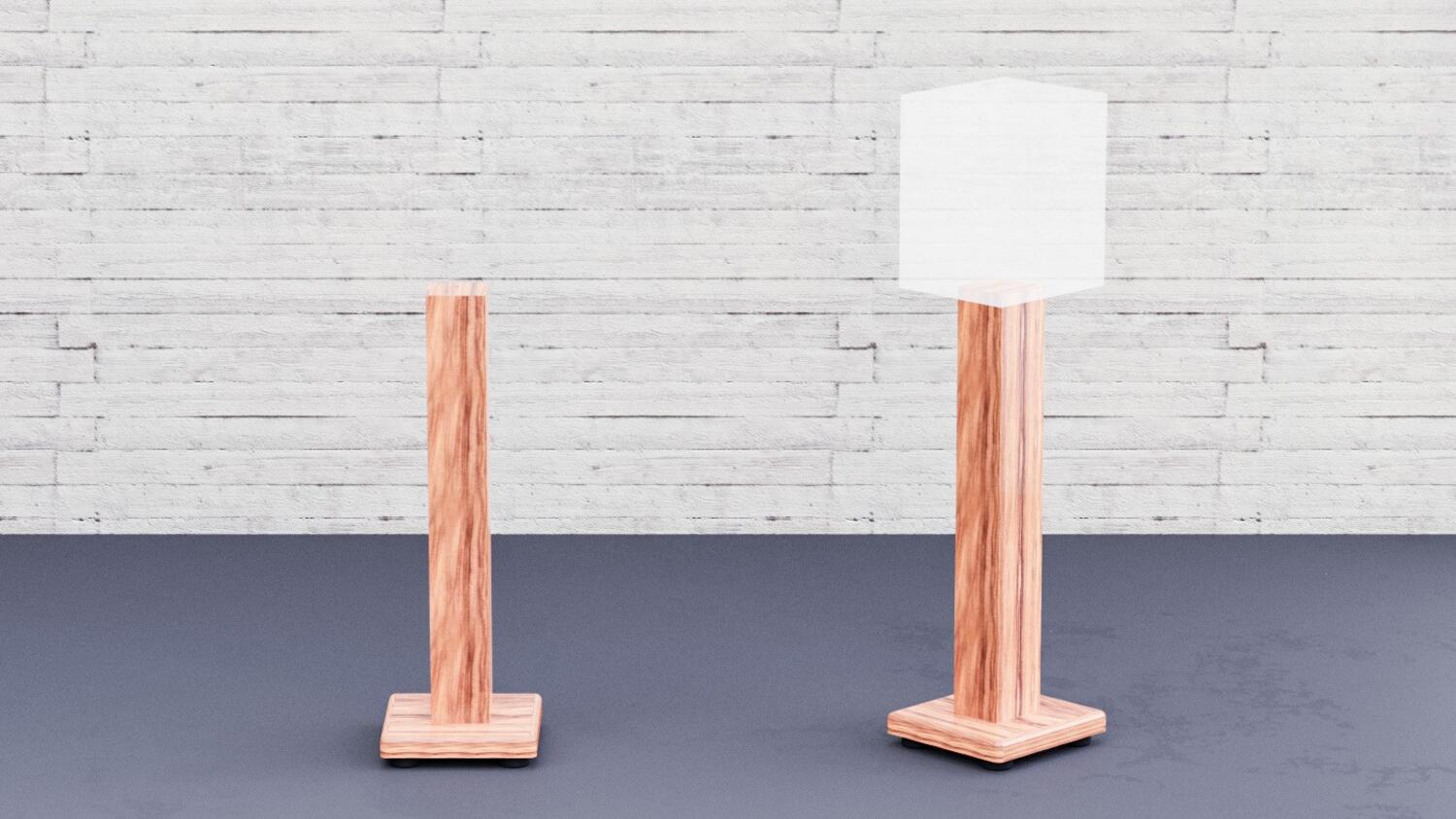

Pedestal
Integrated cable duct in the pedestal
Height (Top edge loudspeaker): approx. 1080 mm (42.5 in)
Base panel (W x D): 265 mm x 280 mm (10.4 in x 11 in)
Pedestal veneered
