Maximum SPL
122 dB peak / r = 1 m (3.3 ft)
ME 803KS 3-way-coaxial-floorstanding-loudspeaker with cardioid radiation characteristic in bass range
The 3-way concept of the ME 803KS consists of two 10-inch woofer system, a 6.5-inch high-performance midrange system and a tweeter array with three vertically arranged 1-inch tweeter calottes. The directivity of the system has been optimised for listening distances of between three and six metres, rendering a natural sound image in stereo and multichannel operation ...

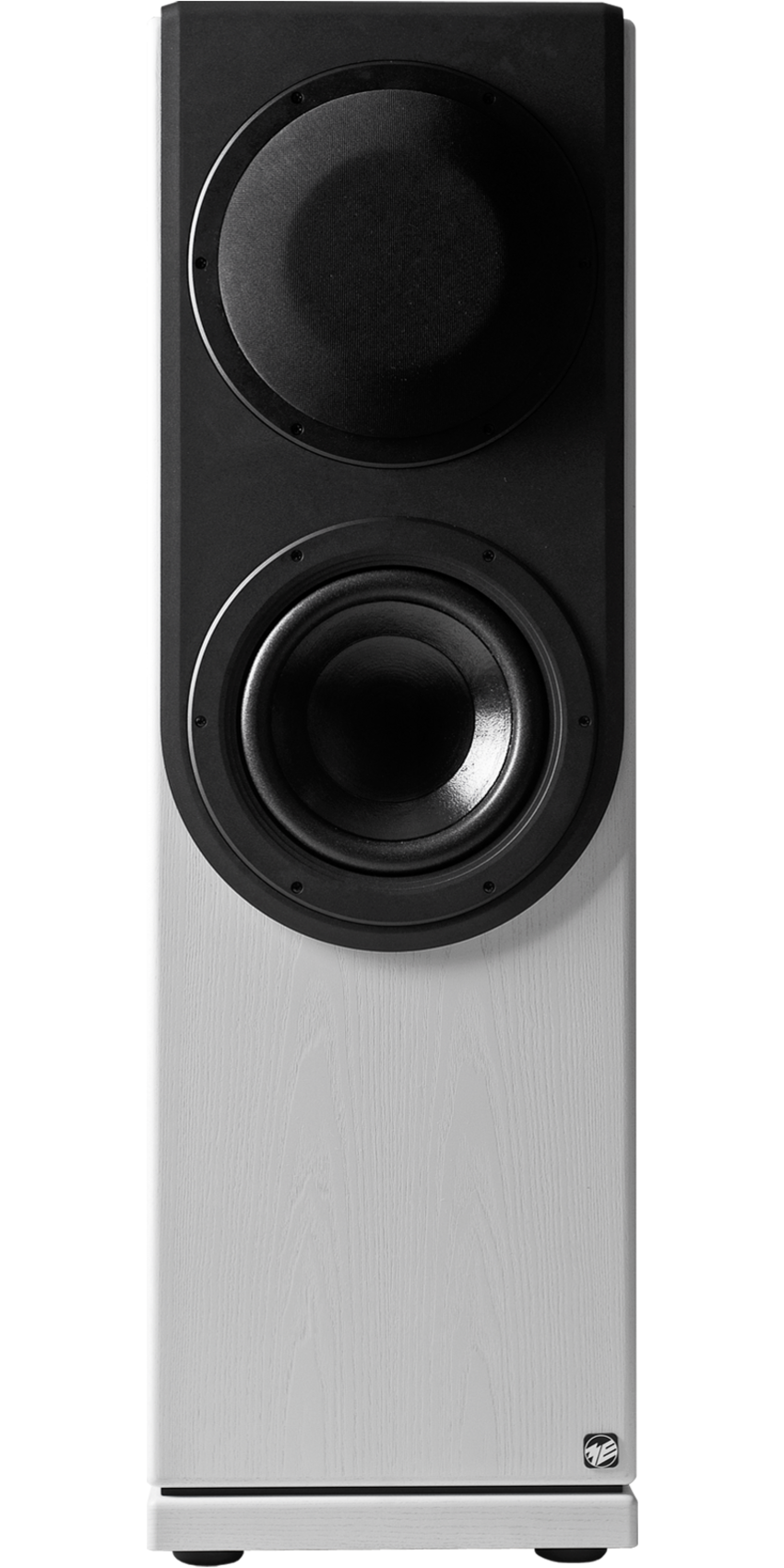

Shown veneer: oak nature and ash white
ME 803KS A natural sound image
The 3-way concept of the ME 803KS consists of two 10-inch woofer system, a 6.5-inch high-performance midrange system and a tweeter array with three vertically arranged 1-inch tweeter calottes. The directivity of the system has been optimised for listening distances of between three and six metres, rendering a natural sound image in stereo and multichannel operation. One 1000 W and two 500 W amplifier modules supply the bass, mid and treble channels with sufficient power. The resulting overload safety ensures that even signals with highest peak levels are not limited. Also, sound pressure levels of up to 122 dB can be performed without audible distortions throughout the effective frequency range. A room compensation network, integrated into the amplifier electronics, allows control of the room-dependent frequency response.
The vertical arrangement of the 10-inch woofers provides a directivity index that ensures realistic bass presence even at listening distances of up to six metres. Our reliable K Technology minimises rearward-directed room reflections in the bass range and simplifies the positioning of the ME 803KS in the listening room.
The low-discolouration and low-distortion characteristics of the 6.5-inch high-performance midrange system result from the intelligent combination of several construction details. The cone loudspeaker, for example, runs without contact to the enclosure, thus avoiding the problem of cabinet resonances. Instead the midrange system is operated with a rearward-directed acoustic flow resistor in order to achieve the desired directivity.
Frequently used wave guides in front of tweeter systems make directivity control easy. However, they tend to produce unavoidable discolourations due to short-time reflections on the inner horn surface. We take a different approach by using a tweeter array and doing without horn loudspeaker systems for sound level enhancement. The tweeter unit that is arranged coaxially in front of the midrange system guarantees the trademark low-colouration reproduction of sound events by our loudspeakers.
All these features make the ME 803KS so unique in the loudspeaker market. It has been optimised for large listening distances and for acoustically less attenuated rooms.
Technical data
active 3-way high-performance-loudspeaker for listening distances between 3 and 6 m
Acoustic characteristics
Bandwidth
25 Hz ... 22 kHz - 6 dB

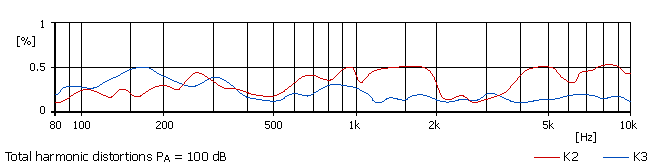

Total harmonic distortion
measured at 100 dB / r = 1 m (3.3 ft) from 100 Hz ... 10 kHz
≤ - 45 dB
Electronic Crossover frequencies
680 Hz and 2 kHz
Loudspeaker systems
Woofer
2x 260 mm (10") cone
Mid-range unit
1x 160 mm (6") cone
Tweeter
3x 25 mm (1") dome
Electrical parameters
Nominal Input level
+ 6 dBu adjustable
Output power PWM-amplifier
LF
Max. 1000 Watt / 4 Ohm
MF
Max. 500 Watt / 4 Ohm
HF
Max. 500 Watt / 4 Ohm
Input Connectors
XLR 3F (programme input)
Output Connector
XLR 3M (bass expansion)
Operation and Clipping indicator
LED on front side
Power requirements
90 ... 132 V, 55 ... 65 Hz
190 ... 265 V, 45 ... 55 Hz
Mains Connection
IEC power connector with HF-filter
Physical parameters
Temperature requirements
for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 ... 75 %
Dimensions (H x W x D)
1155 x 366 x 423 mm (45.5 x 14.4 x 16.7 in)
Weight
71 kg (156.2 lbs)
Cabinet and options
Design of the Cabinet
corpus
MDF-wood in ash black veneered, optional different veneers or colors
acoustic baffle
MDF-wood in microstructure semi gloss black
Other parameters
Maximum SPL
to IEC 268-1
≥ 117 dB
Calibration:
Acoustic output level / PE = - 14 dBu
90 dB / r = 1 m (3.3 ft)

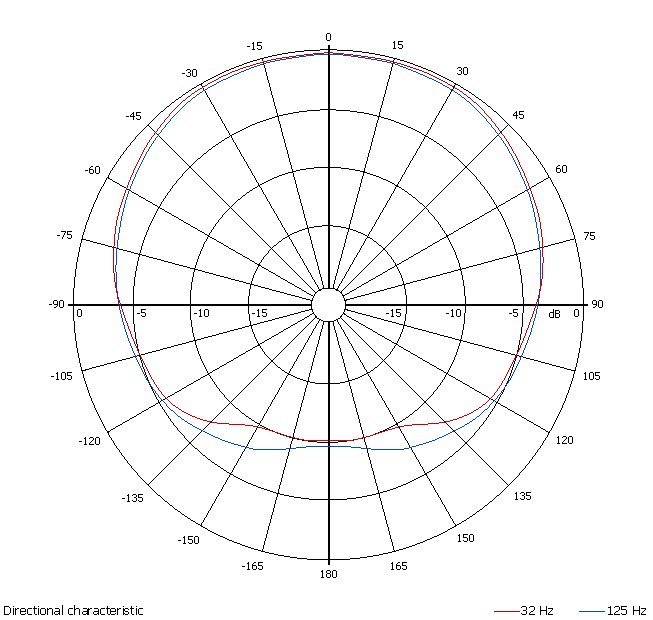

Directivity index
from 100 Hz ... 10 kHz
increasing from 4 to 10 dB
Inherent noise sound level
≤ 10 dB (A) / r = 1 m (3.3 ft)
Input impedance
≥ 10 kOhm RC balanced
Power consumption
30 VA at standby
max. 1000 VA at full load
