Maximum SPL
from 100 Hz ... 6 kHz
116 dB ... 122 dB / r = 1 m (3.3 ft)

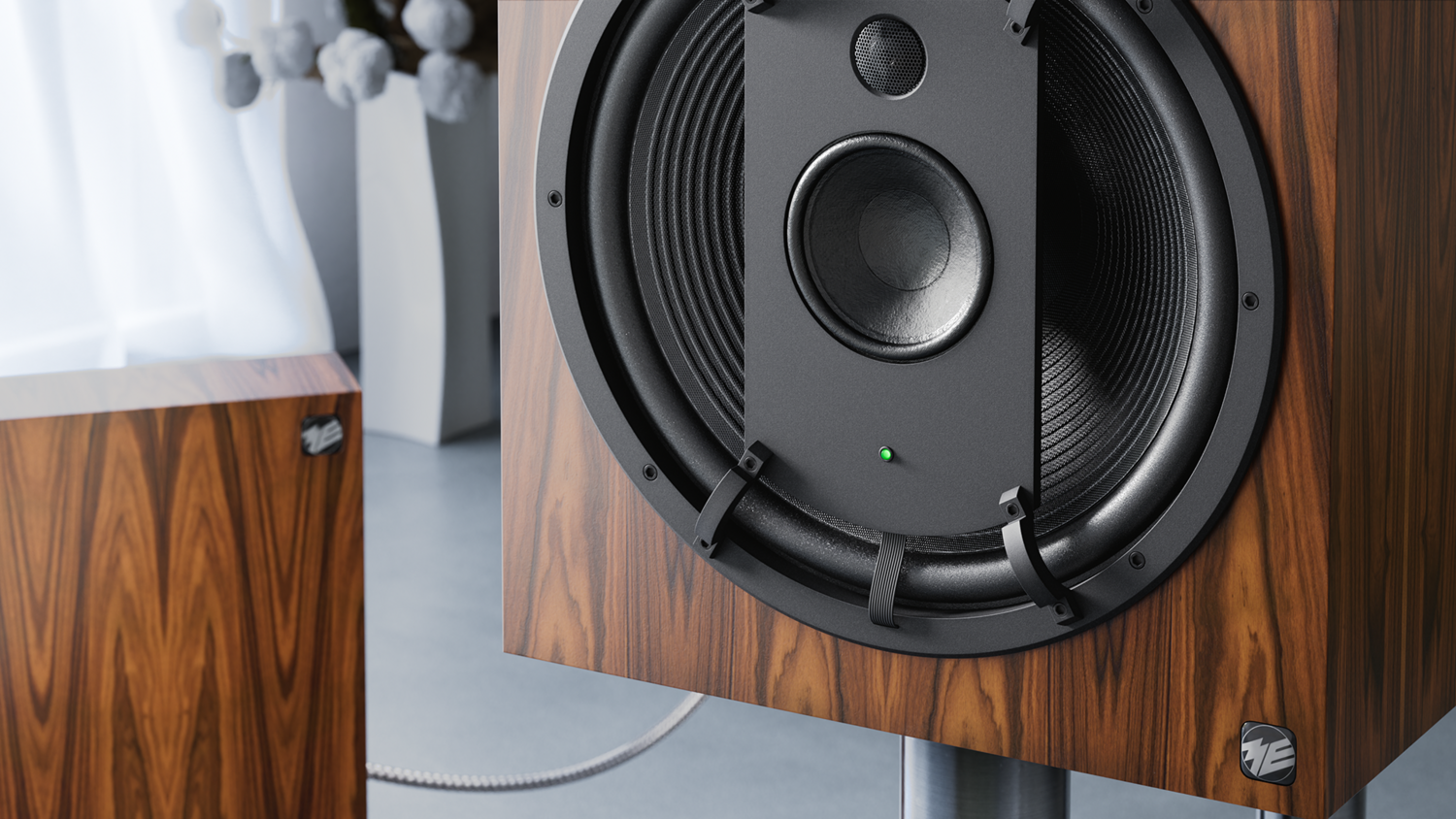

ME 901K1 3-way-coaxial-compact-loudspeaker with cadioid radiation characteristic in bass range

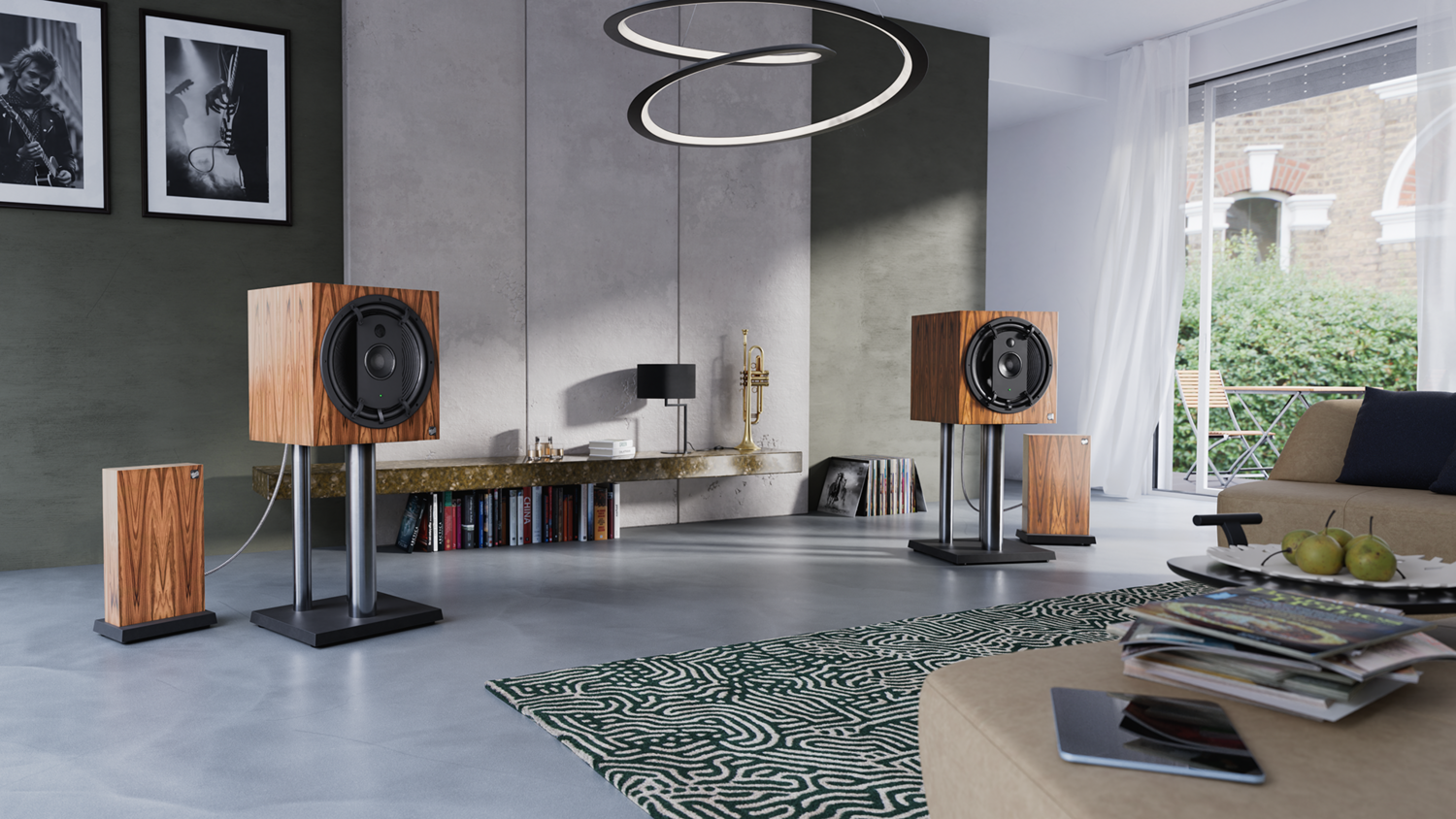

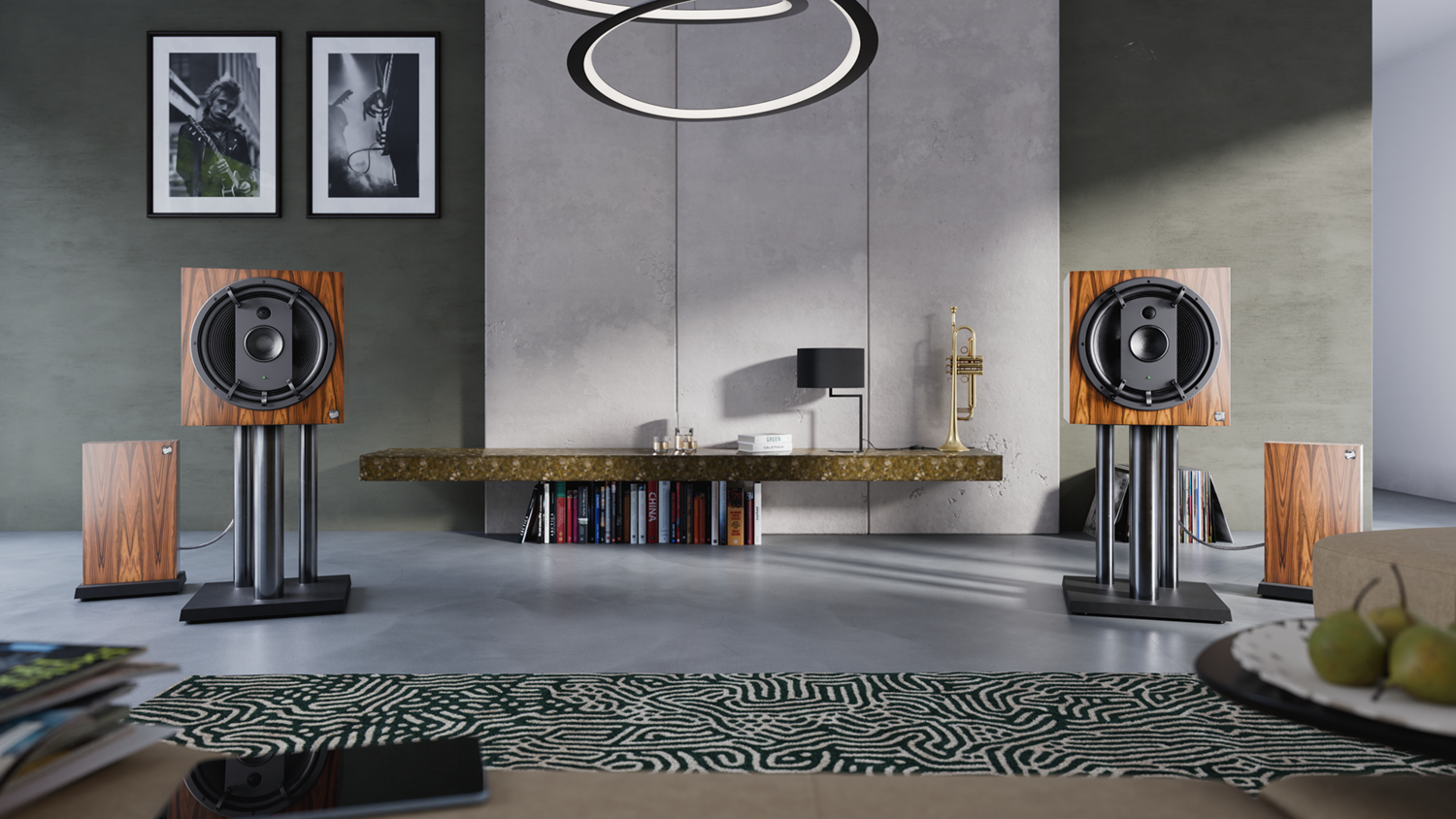

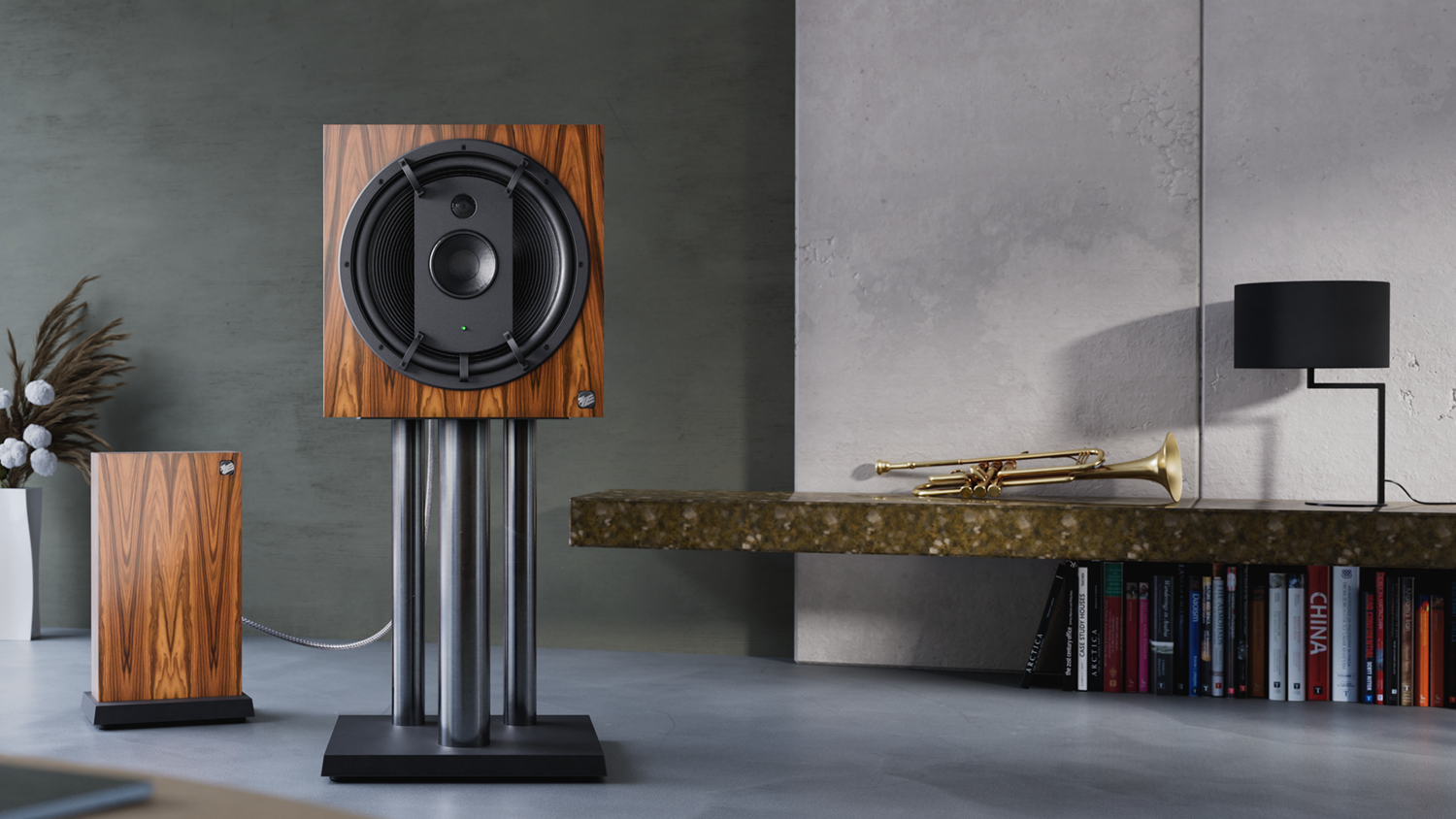

Great events often come from little causes. The ME 901K1 has been designed for music enthusiasts, which focus on the legendary sound of the RL 901K in the smallest possible cabinet. To minimise the size of the cabinet the amplifier module is housed in a separate cabinet.

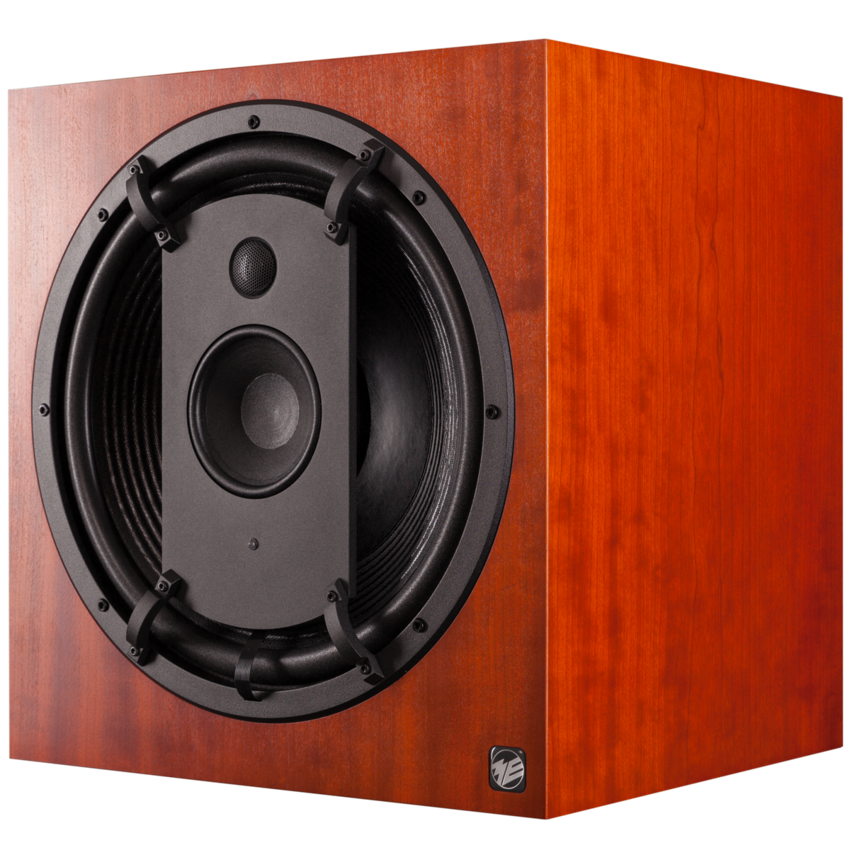

Shown veneer: rosewood nature and american cherry stained
ME 901K1 The legendary RL901K in a new look

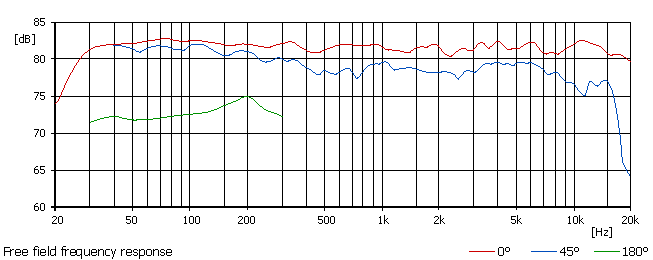

Our reliable K-Technology is also used in the ME 901K1 and by the cardioid radiation characteristics within the frequency range from 30 through to 250 Hz the reflections on the back walls of listening rooms can be minimised. In addition the transfer characteristic can be matched to the acoustical conditions of the reproduction room as well as to the set-up situation by an integrated room matching filter.
The unit for the medium and high-frequency range is combined in a coaxial manner with our long-throw 16-inch bass system and is provided with a directivity index, which supplements in an excellent way that of the bass system. The total directivity index of the monitor was optimised for middle and larger listening distances between two and four metres. The whole system is superior by excellent localisation behaviour. Moreover, a series of constructional measures provide that convincing lowest values of non-linear distortions and colourations could be reached.
The concept of the active 3-way coaxial speaker ME 901K1 offers a high sound compatibility to the RL series and convinces with phenomenal spatiality.
Additionally to the ME 901K1 an elegant stand is available.
Technical data
Active 3-way-coaxial-loudspeaker for listening distances between 2 m and 4 m
Acoustic characteristics
Bandwidth
25 Hz ... 20 kHz ± 3 dB
Total harmonic distortion
measured at 96 dB / r = 1 m (3.3 ft) from 100 Hz ... 10 kHz
≤ - 44 dB
Electronic Crossover frequencies
550 Hz and 2.8 kHz
Loudspeaker systems
Woofer
400 mm (16") cone
Mid-range unit
125 mm (5") cone
Tweeter
25 mm (1") dome
Electrical parameters
Nominal Input level
+ 6 dBu adjustable
Nominal output power MOSFET-amplifie
LF
180 W / 4 Ohms
MF
100 W / 4 Ohms
HF
100 W / 4 Ohms
Input Connector
XLR 3F
Operation and Clipping indicator
LED on front side
Power requirements
230 V ~ ± 10 %; 50 Hz ... 60 Hz
115 V ~ ± 10 %; 50 Hz ... 60 Hz (optional)
100 V ~ ± 10 %; 50 Hz ... 60 Hz (optional)
Mains Connection
IEC power connector
Connection between loudspeaker and amplifier case
Speakon NLT8FX; shielded cable; standard length 1.50 m; other lengths optional available
Physical parameters
Temperature requirements
for use
+ 15°C ... + 35°C (59°F ... 95°F)
for storage
- 25°C ... + 45°C (- 13°F ... 113°F)
humidity
45 % ... 75 %
Dimensions (H x W x D)
Loudspeaker
480 x 460 x 400 mm (18.9" x 18.1" x 15.8")
Amplifier
520 x 310 x 200 mm (20.5" x 12.2" x 7.9")
Pedestal
600 x 470 x 410 mm (23.6" x 18.5" x 16.1")
Weight
Loudspeaker
34.9 kg (76.9 lbs)
Amplifier
13.3 kg (29.3 lbs)
Pedestal
17.0 kg (37.5 lbs)
Cabinet and options
Design of the Cabinet
MDF-wood in ash black veneered; optional different veneers or colours
Loudspeaker
optionally with holding device available
Amplifier
base plate in microstructure semi-gloss-black
Pedestal
optional available
fillable columns and top plate in polished stainless steel
base plate in microstructure semi-gloss-black
Other parameters
Calibration:
Acoustic output level / PE = - 14 dBu
89 dB / r = 1 m (3.3 ft)
Directivity index
from 200 Hz ... 10 kHz
increasing from 5 dB to 10 dB
Inherent noise sound level
≤ 7 dB (A) / r = 1 m (3.3 ft)
Input impedance
≥ 10 kOhms RC balanced
Power consumption
35 VA at standby
max. 300 VA at full load
Downloads
Acoustic diagrams
Brochure and Documentation
Reports
Technical drawings

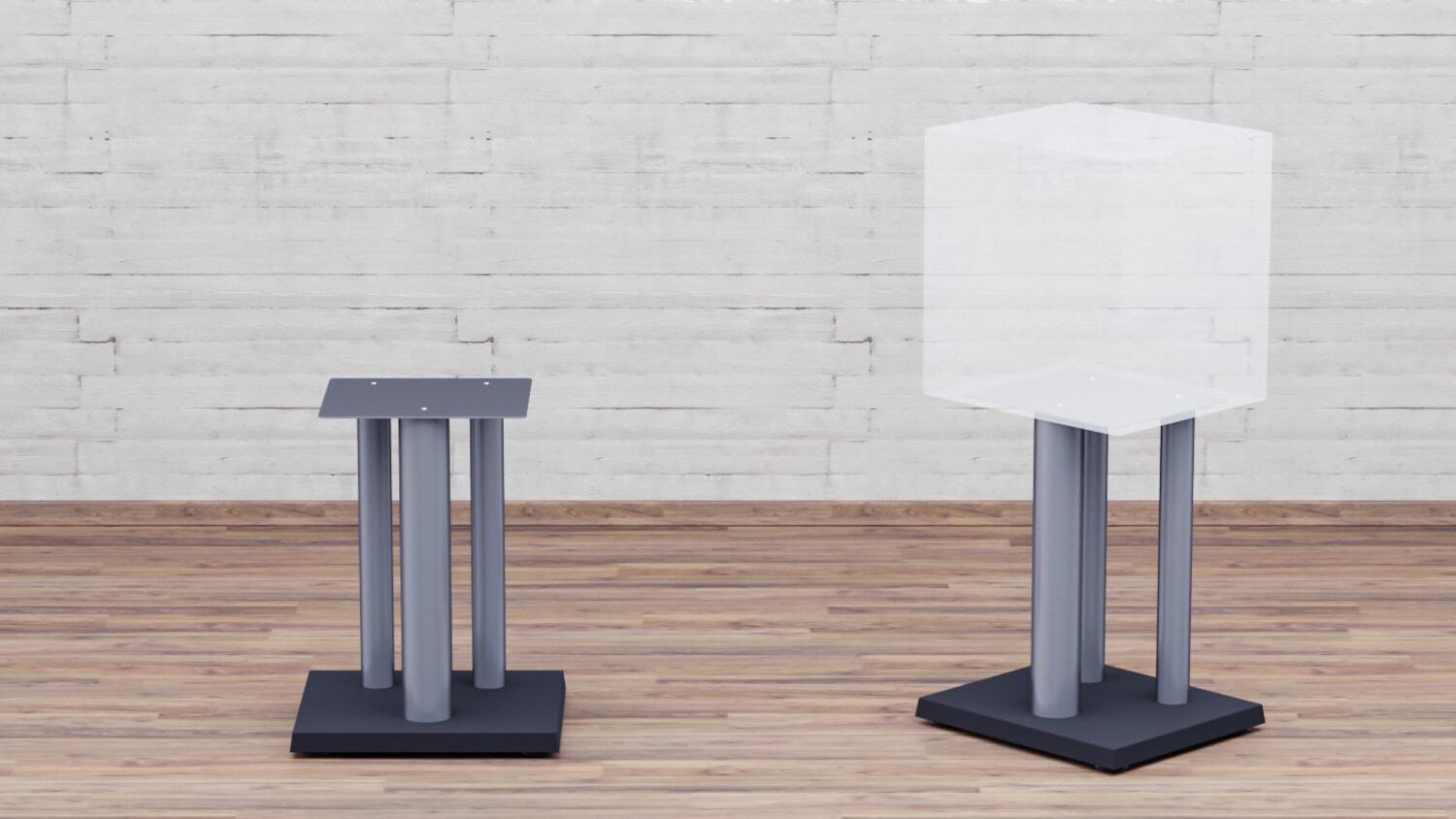

Pedestal
Height (top edge ME 901K1): ca. 1080 mm (42.5")
Base plate (B x T): 470 x 410 mm (18.5" x 16.1")
Fillable pillars and top plate in polished stainless steel
Base plate in microstructure semi-gloss-black
